Scan Mode | Fixed Scan | Auto Scan | |
---|---|---|---|
Mode of Alignment | Feature; Manual | Turntable; Manual | |
Single Shot Accuracy | ≤0.1 mm | ||
Minimum Scan Volume | 30 × 30 × 30 mm | ||
Maximum Scan Volume | 700×700×700 mm | 200×200×200 mm | |
Range of Single Capture | 200×150 mm | ||
Scan Speed | <8 s | ||
Point Distance | 0.17 mm ~ 0.2 mm | ||
Texture | Yes | ||
File Format | OBJ, STL, ASC, PLY | ||
Camera Resolution | 1.3 Mega Pixels | ||
Light Source | White Light | ||
Stand-off Distance | 290 ~ 480 mm | ||
Computer Requirements (Required) | USB:1 ×USB 2.0 or 3.0; OS: Win7, Win8, Win10 (64 bit); CPU: Dual-core i5 ; RAM: 8G | ||
Computer Requirements (Recommended) | Graphics card: Nvidia series;Graphics memory > 1G | ||
Weight (unpacked) | 4.5 kg | ||
Weight (packed) | 4.9 kg | ||
Dimension | 570×210×210 mm | ||
Power Supply | 40 w | ||
Input Voltage | DC:12 v, 3.33 A | ||
Calibration Board | Standard | ||
Turntable | Standard | ||
Load Capacity of Turntable | 5 kg |
Scan Mode | Fixed Scan | Auto Scan | |
---|---|---|---|
Mode of Alignment | Feature; Markers; Manual | Turntable, Markers, Manual, Turntable Coded Target | |
Single Shot Accuracy | ≤0.05 mm | ||
Minimum Scan Volume | 30 × 30 × 30 mm | ||
Maximum Scan Volume | 1200 ×1200×1200mm | 200×200×200 mm | |
Range of Single Capture | 200×150 mm | ||
Scan Speed | <4 s | ||
Point Distance | 0.17 mm ~ 0.2 mm | ||
Texture | Yes | ||
File Format | OBJ, STL, ASC, PLY | ||
Camera Resolution | 1.3 Mega Pixels | ||
Light Source | White Light | ||
Stand-off Distance | 290 ~ 480 mm | ||
Computer Requirements (Required) | USB:1 ×USB 2.0 or 3.0; OS: Win7, Win8, Win10 (64 bit); CPU: Dual-core i5 ; RAM: 8G | ||
Computer Requirements (Recommended) | Graphics card: Nvidia series (GTX 660 or higher) Graphic memory > 2G; RAM: 16 G | ||
Weight (unpacked) | 4.2 kg | ||
Weight (packed) | 7.0 kg | ||
Dimension | 570×210×210 mm | ||
Power Supply | 40 w | ||
Input Voltage | DC:12 v, 3.33 A | ||
Calibration Board | HD | ||
Turntable | Turntable with markers | ||
Load Capacity of Turntable | 5 kg |

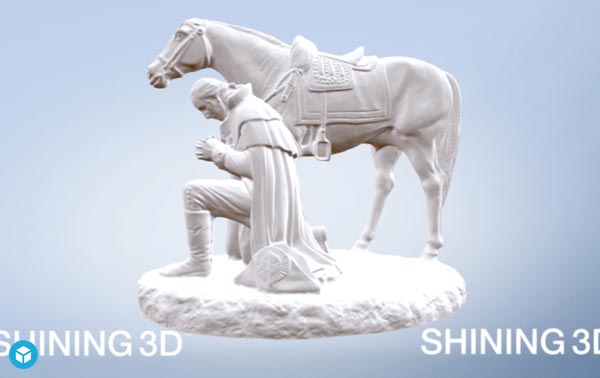

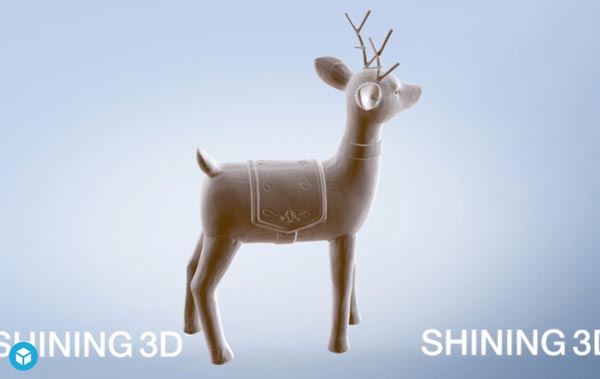

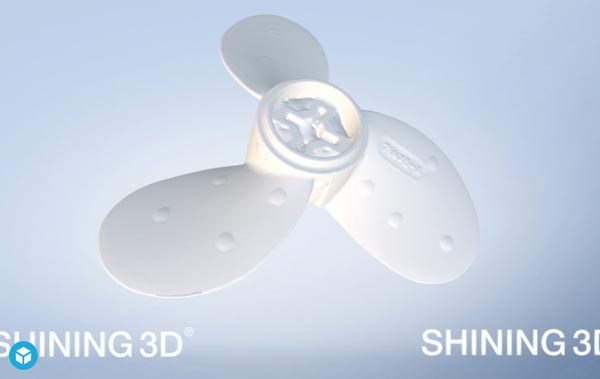

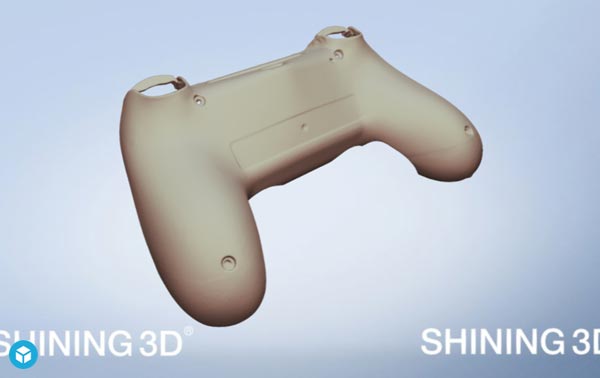

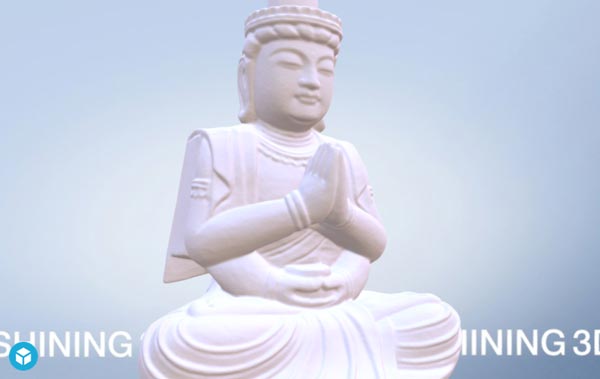

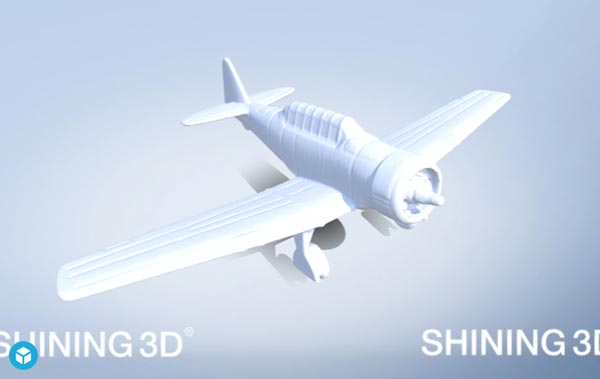

Go Sketchfab and check the real-world scan data captured by EinScan SP. All scan files produced and owned by Shining 3D®.

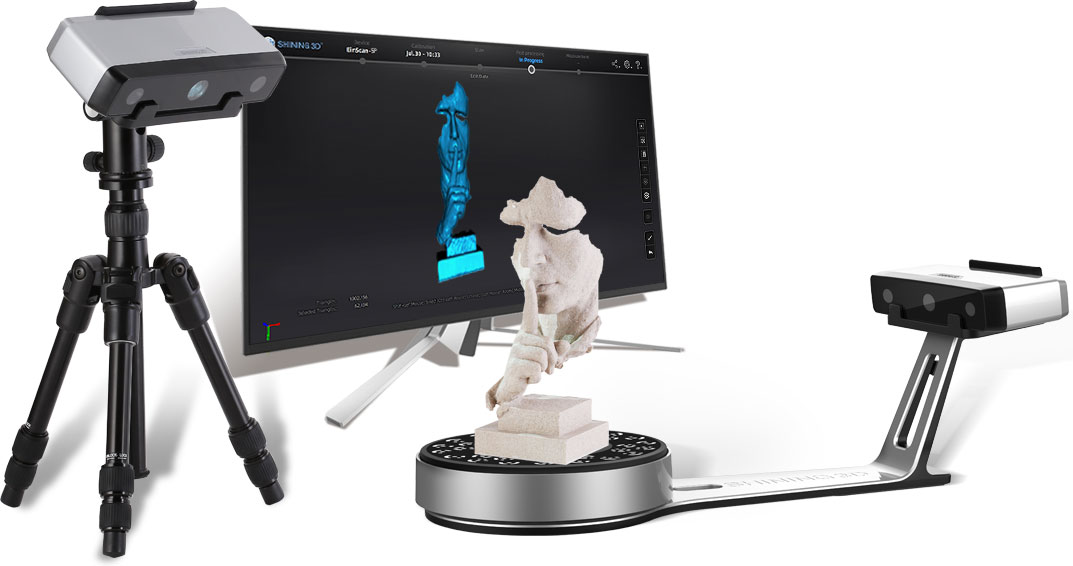

Model | ![]() EinScan SE Scanner | ![]() EinScan SP Scanner | ||||
Scan Mode | Fixed Scan with Turntable Fixed Scan without Turntable | Fixed Scan with Turntable Fixed Scan without Turntable | ||||
---|---|---|---|---|---|---|
Scan Accuracy | ≤0.1 mm(single shot accuracy) | ≤0.05 mm(single shot accuracy) | ||||
Scan Speed | Single scan<8 s | Single scan<4 s | ||||
Point Distance | 0.17mm~0.2mm | |||||
Align Mode | Fixed Scan w/o Turntable Feature, Manual Fixed Scan w/ Turntable Turntable, Manual | Fixed Scan w/o Turntable Feature, Markers, Manual Fixed Scan w/ Turntable Turntable, Turntable Coded Targets, Markers, Manual | ||||
Texture Scan | Yes | |||||
Outdoor Operation | Set up the shelter or cover to avoid direct sunlight | |||||
Special Objects for Scanning | For the transparent, highly reflective or some dark objects, please spray powder before scanning. | |||||
Single Scan Range | 200×150 mm | |||||
Working Distance | 290 ~ 480 mm | |||||
Light Source | LED | |||||
Printable Data Output | Able to export watertight 3D model directly to 3D printing | |||||
Output Formats | OBJ, STL, ASC, PLY, 3MF | OBJ, STL, ASC, PLY, 3MF, P3 | ||||
Turntable | Standard | Turntable with coded targets | ||||
Turntable Loading Capacity | 5 kg | |||||
Net Weight | 2.5 kg | 4.2 kg | ||||
Supported OS | Windows 7, 8 or 10, 64bit / Mac (OS 10.10.9 to 10.12.3) | |||||
PC Requirements | Nvidia series; Graphic memory > 1G; 1 ×USB 2.0 or 3.0; i5 or higner; >8G |
